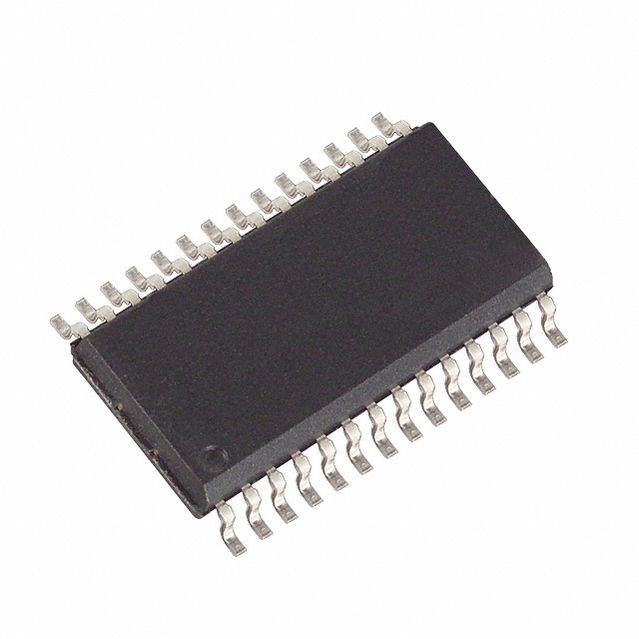

The MAX337EWI+ from Maxim Integrated Products is a dual 8 channel, low leakage, CMOS analogue multiplexer in 28 pin WSOIC package. This monolithic CMOS analogue multiplexer is designed to connect one of 8 inputs to a common output by control of a 3bit binary address. It can be used as either a mux or a demux and offers electrostatic discharge (ESD) protection greater than 2000V, per method 3015.7. It is used in precision data acquisition, precision signal routing and test equipment.
Supply voltage range is 4.5V to 30V, ±4.5V to ±20V
Operating temperature range from -40°C to +85°C
Maximum RON is 700 ohm at TA = +25°C (single supply)
Maximum transition time is 600ns at TA = +25°C (single supply)
Maximum on-resistance matching is 10 ohm at TA = +25°C (dual supply)
Maximum no-off leakage current is 20pA at TA = +25°C (dual supply)
