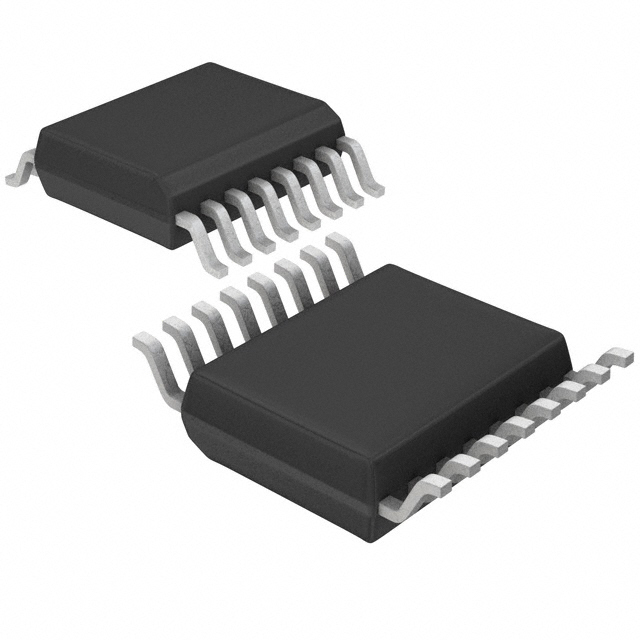

The MAX3316ECAE+ from Maxim Integrated Products is a ±15KV ESD-protected, 2.5V, 1µA, 460Kbps, RS232 compatible transceiver in 16 pin SSOP package. The transmitter outputs and receiver inputs are protected to ±15KV using the IEC 1000-4-2 air-gap discharge method, ±8KV using the IEC 1000-4-2 contact discharge method and ±15KV using the human body model. It has a proprietary low-dropout transmitter output stage enabling RS232 compatible operation from a +2.25V to +3V supply with a dual charge pump. The charge pump requires only four 0.1µF capacitors. Typical applications include palmtop computers, hand-held instruments, pagers, cellular phones, GPS, handy terminals and hand held electronic books.
Guaranteed 460Kbps data rate
Operating temperature range from 0°C to 70°C
Guaranteed 4V/µs slew rate
±4V output voltage swing
10Mohm output resistance
±25mA output short circuit current
0.175µs receiver propagation delay
100ns transmitter skew
50ns receiver skew
RS232 compatible down to 2.25V
Cell Phones; Global Positioning Systems (GPS); Handheld Electronic Books; Handheld Instruments (PDAs, Palmtops); Handy Terminals; Pagers; Palmtop Computers
