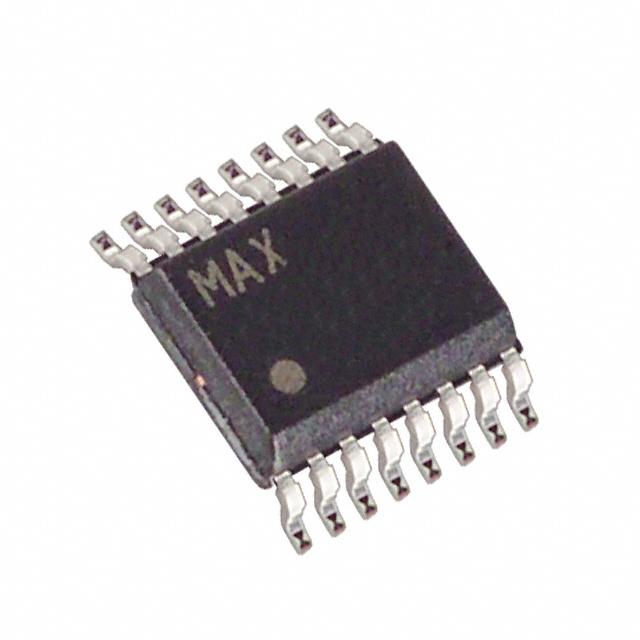

The MAX1714BEEE+ is a high speed step-down controller for notebook computers in 16 pin QSOP package. This pulse width modulation (PWM) controller provides high efficiency, excellent transient response and high DC output accuracy needed for stepping down high voltage batteries to generate low voltage CPU core or chip-set/RAM supplies in notebook computers. Maxim"s proprietary Quick PWM pulse width modulator in IC is specifically designed for handling fast load steps while maintaining a relatively constant operating frequency and inductor operating point over a wide range of input voltages. The Quick-PWM architecture circumvents the poor load-transient timing problems of fixed frequency current-mode PWMs while also avoiding problems caused by widely varying switching frequencies in conventional constant-on-time and constant-offtime PWM schemes. It is used in CPU core supply, chipset/RAM supply as low as 1V and 1.8V and 2.5V I/O supply.
Supply voltage range is 4.5V to 5.5V and battery input range from 2V to 28V
Operating temperature range from -40°C to 85°C
Ultra high efficiency, no current-sense resistor (lossless ILIMIT)
1.7ms digital soft-start
1% VOUT accuracy over line and load, drives large synchronous-rectifier FETs
2.5V/3.3V fixed or 1V to 5.5V adjustable output range
