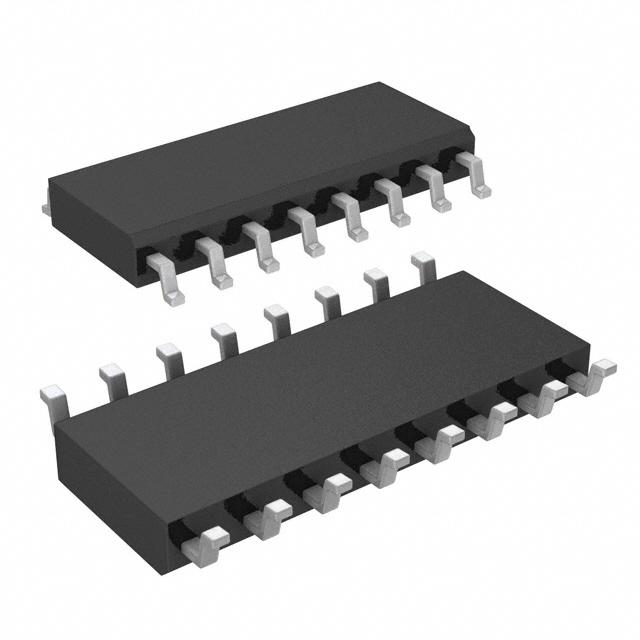

The MAX14931FASE+ is a 4-channel, 2.75KVrms digital isolator in 16 pin NSOIC package. It offers all three possible unidirectional channel configurations to accommodate any 4-channel design including SPI, RS232, RS485 and digital I/O applications. Independent 1.71V to 5.5V supplies on each side of the isolator also make the device suitable for use as level translators. Typical applications include fieldbus communications for industrial automation, isolated SPI, RS232, RS485/RS422, general multichannel isolation applications, battery management and medical systems.
Data rate is 25Mbps
Operating temperature range from -40°C to 125°C
Default low configuration
Undervoltage lockout threshold is 1.58V
Undervoltage lockout threshold hysteresis is 50mV
Maximum repetitive peak isolation voltage is 630VP & maximum working isolation voltage is 443Vrms
Withstands ±10KV surge per IEC 61000-4-5
UL according to UL1577, cUL according to CSA bulletin 5A
