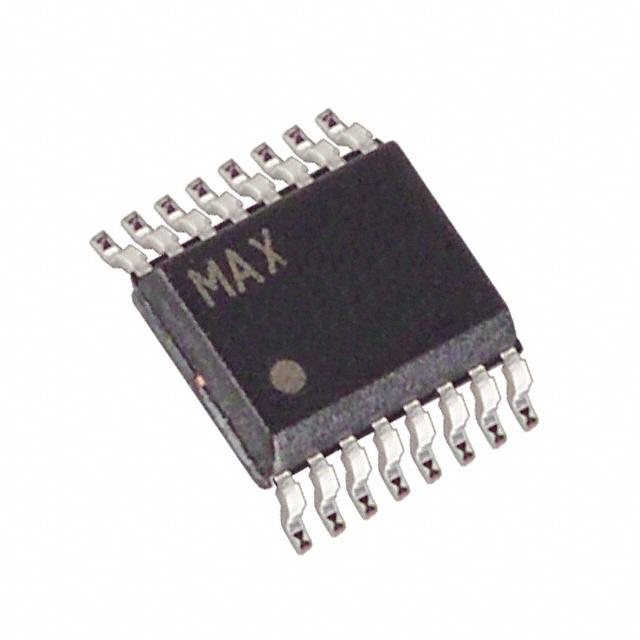

The MAX13335EGEE/V+ from Maxim Integrated Products is a dual automotive differential audio receivers with I2C control and diagnostics in 16 pin QSOP package. It is a high -fidelity stereo audio input amplifier designed for automotive applications requiring audio-level detection and/or jack sensing capability. It features 2-ch, low noise, programmable gain amplifier that accepts fully differential and quasi differential input signals with diagnostics capability controlled through an I2C interface. The device"s audio receiver can also pair with MAX13325 audio transmitter to form a complete differential audio link in automotive systems. Each channel features high 80dB CMRR enabling recovery of audio signals in presence of large common mode noise in automotive environments. Typical applications are radio head units, RSA/RSE, connectivity modules and automotive telematics.
Operating voltage of 3.3V (3 to 3.6V) or 5V (4.75 to 5.25V), wide common mode input of -5 to 11.5V
Automotive AEC-Q100 grade 2 qualified, operating temperature range from -40°C to 105°C
Gain range from -14dB to +16dB, +28V to -16V tolerant inputs
Automotive grade ESD protected against ISO 10605 ±15KV air gap and ±8KV contact discharge ESD pulses
Fully differential inputs up to 7VRMS, quasi-differential inputs up to 3.5VRMS
Audio presence detection, jack sense detection, diagnostic capability
Programmable gain with zero-crossing detection
11mA quiescent supply current, 22Kohm differential and 14Kohm single ended input impedance
104.8dB of SNR at VOUT = 1.4VRMS, 8µVRMS output noise
