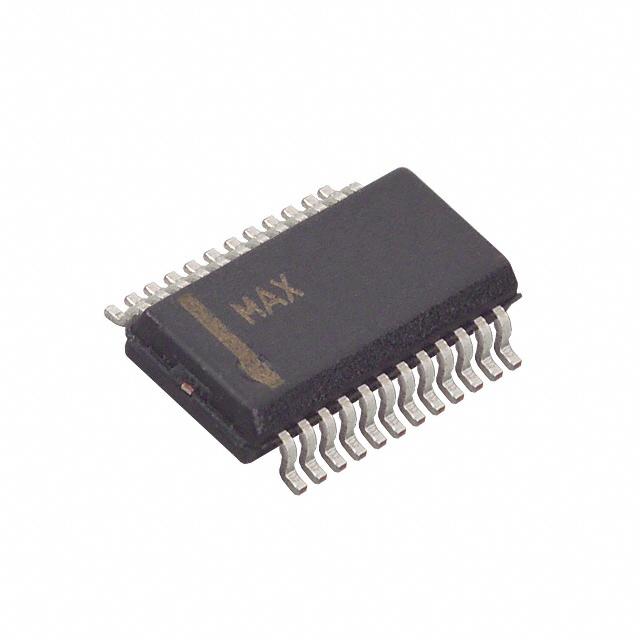

The MAX1230BEEG+ is a 12bit 300Ksps analogue to digital converter (ADC) with FIFO, temperature sensor, internal reference in 24 pin QSOP package. The low power, serial output, multichannel ADC with temperature sensing capability for temperature control, process control and monitoring applications. This ADC utilizes a fully differential, successive approximation register (SAR) conversion technique and an on-chip T/H block to convert temperature and voltage signals into a 12bit digital result. Both single ended and differential configurations are supported with a unipolar signal range for single ended mode and bipolar or unipolar ranges for differential mode. It feature an on-chip FIFO, scan mode, internal clock mode, internal averaging and AutoShutdown function.
Supply voltage range is 4.75V to 5.25V
Operating temperature range from -40°C to 85°C
16 input channel
Internal temperature sensor with ±0.7°C accuracy
Accuracy of ±1 LSB INL, ±1 LSB DNL, no missing codes overtemperature
Low power of 2.3mA at 300Ksps and single +5V operation
Internal 4.096V reference or external differential reference
