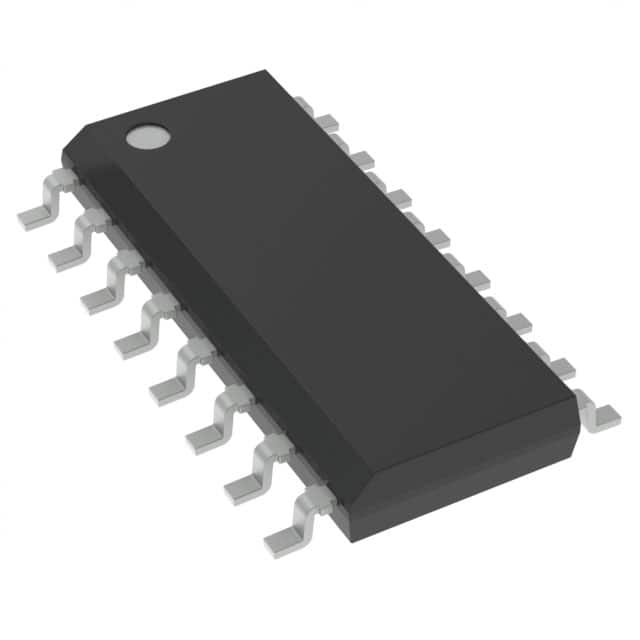

The M74HC4851 device is a single 8-channel analog multiplexer/demultiplexer manufactured with silicon gate C2MOS technology.
It features injection current effect control which makes the device particularly suited for use in automotive applications where voltages in excess of normal logic voltages are common. The injection current effect control allows signals at disabled input channels to exceed the supply voltage range or go down to ground without affecting the signal of the enabled analog channel.
This eliminates the need for external diode-resistor networks typically used to keep the analog channel signals within the supply voltage range.
**Key Features**
Low power dissipation
ICC = 2 μA (max.) at TA = 25 C
Injection current protection
VΔOUT <1 m V at VCC = 5 V, IIN ≤ 1 mA
RS ≤ 3.9 kΩ
“ON” resistance at TA = 25 C
215 Ω typ. (VCC = 3.0 V)
160 Ω typ. (VCC = 4.5 V)
150 Ω typ. (VCC = 6 V)
Fast switching
tpd = 8.6 ns (typ.) at TA = 25 C, VCC = 4.5 V
Wide operating supply voltage range
VCC = 2 V to 6 V
High noise immunity
VNIH = VNIL = 28% VCC (min.)
Pin and function compatible with series 4051, 4851
