LT3009EDC#TRMPBFLinear TechnologyLINEAR TECHNOLOGY LT3009EDC#TRMPBF LDO Voltage Regulator, Adjustable, 1.6V to 20V in, 280mV drop, 600mV to 20V/20mA out, DFN-6
￥
16.52

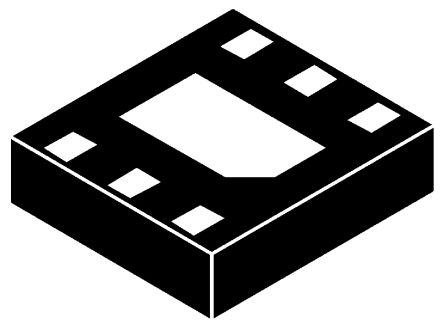

显示的图像仅供参考，应从产品数据表中获得准确的规格。
LT3009EDC#TRMPBFLinear Technology
制造商:
Linear Technology
制造商型号#:
LT3009EDC#TRMPBF
百芯编号#:
CM53808800
价格(CNY):
￥
16.52
百芯库存:
700
个
库存地点:
可供应量:
397
个在库
此为供应商库存，需要与销售确认
产品类别:
稳压,芯片
产品描述:
LINEAR TECHNOLOGY LT3009EDC#TRMPBF LDO Voltage Regulator, Adjustable, 1.6V to 20V in, 280mV drop, 600mV to 20V/20mA out, DFN-6
The LT3009EDC#TRMPBF is a micro-power low-dropout Voltage (LDO) Linear Regulator has supply 20mA output current with a dropout voltage of 280mV. No-load quiescent current is 3µA. Ground pin current remains at less than 5% of output current as load increases. In shutdown, quiescent current is less than 1µA. It optimizes stability and transient response with low ESR ceramic capacitors, requiring a minimum of only 1µF. The regulator does not require the addition of ESR as is common with other regulator. The internal protection circuitry includes current limiting, thermal limiting, reverse-battery protection and reverse-current protection. It is ideal for applications that require moderate output drive capability coupled with ultralow standby power consumption. The device is available in fixed output voltages of 1.2/1.5/1.8/2.5/3.3/5V and as an adjustable device with an output voltage range down to the 600mV reference.
±2% Over load, line and temperature output tolerance
1µF Stable with low ESR, ceramic output capacitors
