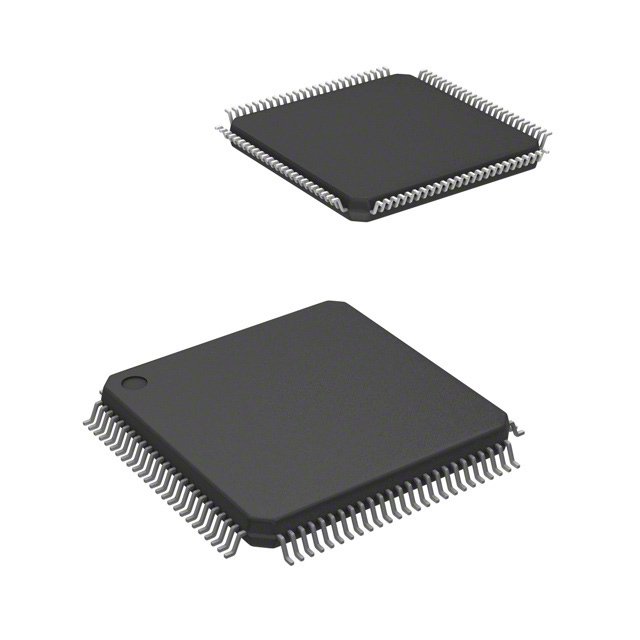

The LPC2365FBD100,551 is a 16-/32-bit Microcontroller based on ARM7TDMI-S core with RISC architecture operates at a maximum frequency of 72MHz. A 128-bit wide memory interface and an unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance up to 30 % over Thumb mode. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. The device incorporates 256kB internal flash, 58kB internal RAM, 8-channel 10-bit A/D converter, 10-bit D/A converter, an Ethernet, four 32-bit timers and real-time clock (RTC) and 70 general-purpose I/O pins. This device also features peripherals like four UARTs, three inter-integrated circuit (I2C), one serial peripheral interface (SPI) modules and one integrated interchip sound (I2S).
Dual Advanced high-performance bus (AHB) system
Advanced vectored interrupt controller (VIC)
General purpose DMA controller (GPDMA)
Ethernet MAC with associated DMA controller
70 General purpose I/O pins with configurable pull-up/down resistors
PWM/timer block with support for three-phase motor control
Real-time clock (RTC) with separate power pin
2KB SRAM powered from the RTC power pin
Watchdog timer (WDT)
Standard ARM test/debug interface for compatibility with existing tools
Emulation trace module supports real-time trace
Four reduced power modes - Idle, sleep, power-down and deep power-down
Processor wake-up from power-down mode via any interrupt able to operate during power-down mode
Two independent power domains allow fine tuning of power consumption based on needed features
Each peripheral has its own clock divider for further power saving
Brownout detect with separate thresholds for interrupt and forced reset
On-chip power-on reset
On-chip crystal oscillator with an operating range of 1MHz to 24MHz
4MHz Internal RC oscillator trimmed to 1 % accuracy
On-chip PLL allows CPU operation up to the maximum CPU rate
