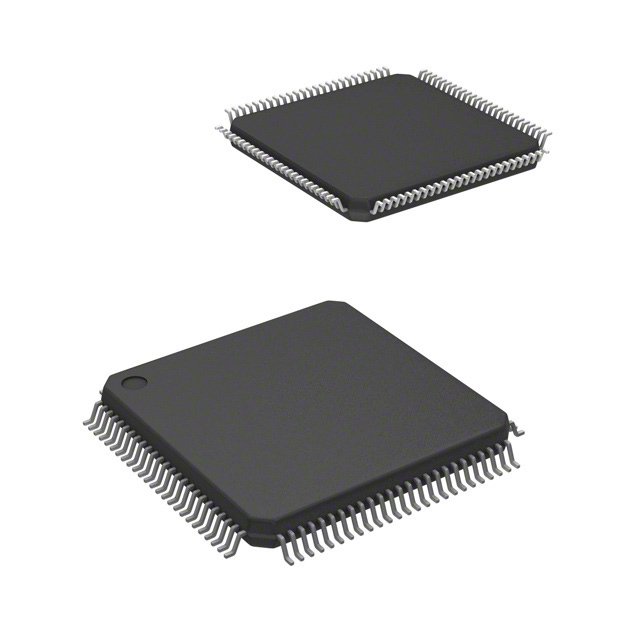

The LPC12D27FBD100 is an ARM Cortex-M0 based microcontroller for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M0 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC12D27FBD100 is a dual-chip module consisting of a LPC1227 single-chip microcontroller combined with a PCF8576D Universal LCD driver in a low-cost 100-pin package. The LCD driver provides 40 segments and supports from one to four backplanes. Display overhead is minimized by an on-chip display RAM with autoincrement addressing.
MoreLess
## Features
* 40-Segment LCD driver
* One to four backplanes
* On-chip display RAM with auto-increment addressing
* ARM Cortex-M0 processor, running at frequencies of up to 45 MHz
* ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC)
* Serial Wire Debug (SWD)
* System tick timer
* 8 kB SRAM
* 128 kB on-chip flash programming memory
* In-System Programming (ISP) and In-Application Programming (IAP)
* Includes ROM-based 32-bit integer division routines
* Crystal oscillator with an operating range of 1 MHz to 25 MHz
