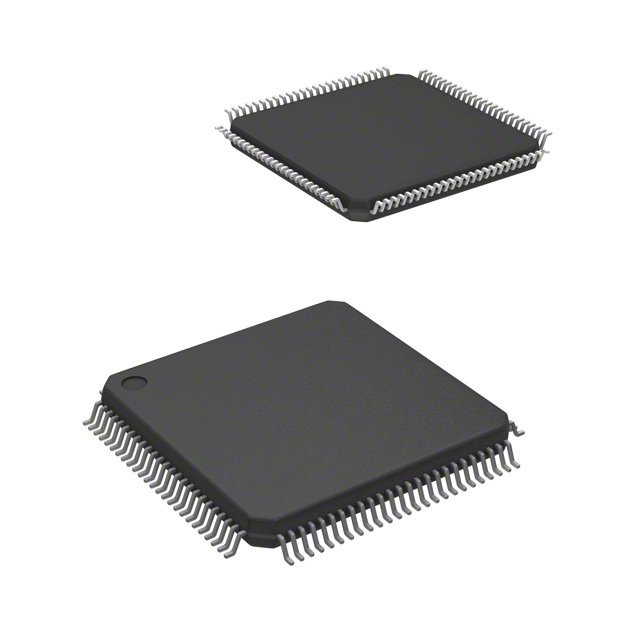

The LM3S9D96-IQC80-A2 is a Stellaris Microcontroller features 32-bit ARM® Cortex™-M3 80MHz processor core with System Timer (SysTick), integrated Nested Vectored Interrupt Controller (NVIC), Memory Protection Unit (MPU), System Control Block (SCB) and Thumb-2 instruction set. On-chip memory, featuring 512kB single-cycle flash up to 50MHz 96kB single-cycle SRAM, internal ROM loaded with StellarisWare® software. Highly configurable 10/100 Ethernet Controller that conforms to the IEEE 802.3-2002 specification with full- and half-duplex modes for both 100Mbps and 10Mbps operation, with IEEE 1588 PTP hardware support and automatic MDI/MDI-X cross-over correction with software assist. Full-featured debug solution with debug access via JTAG and Serial Wire interfaces and IEEE 1149.1-1990 compliant Test Access Port (TAP) controller.
Multiple clock sources for microcontroller system clock
SafeRTOS™ pre-emptive real-time kernel
Universal serial bus (USB) controller
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
