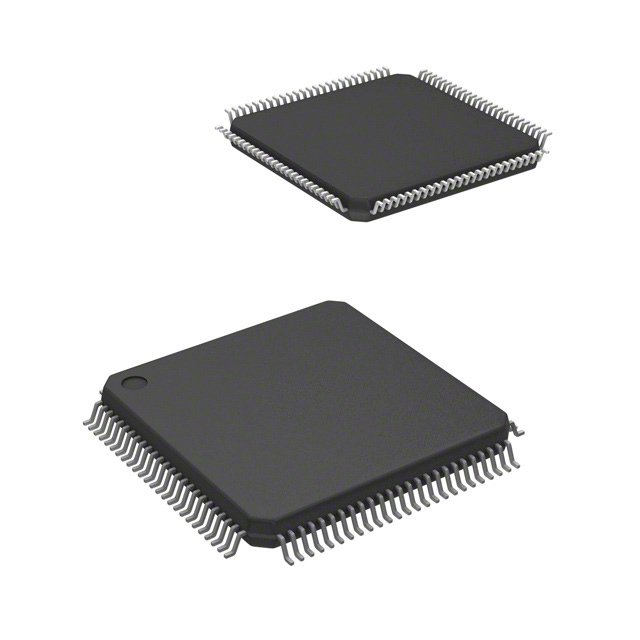

* 32-bit ARM® Cortex™-M3 25-MHz processor core with System Timer (SysTick), integrated Nested Vectored Interrupt Controller (NVIC), Memory Protection Unit (MPU), and Thumb-2 instruction set * Full-featured debug solution with debug access via JTAG and Serial Wire interfaces, and IEEE 1149.1-1990 compliant Test Access Port (TAP) controller * 128 KB single-cycle flash and 32 KB single-cycle SRAM * Lower-power battery-backed Hibernation module with Real-Time Clock * 5-46 GPIOs (depending on configuration) with programmable control for GPIO interrupts and pad configuration * ARM FiRM-compliant Watchdog Timer ; plus four General-Purpose Timer Modules (GPTM), each of which provides two 16-bit timers/counters and can be configured to operate independently * 10-bit Analog-to-Digital Converter (ADC) withanalog input channels and a sample rate ofsamples/second * Three fully programmable 16C550-type UARTs with IrDA support * Synchronous Serial Interface (SSI), supporting operation for Freescale SPI, MICROWIRE, or Texas Instruments synchronous serial interfaces * Inter-Integrated Circuit (I2C) Interface, providing Standard (100 Kbps) and Fast (400 Kbps) transmission and support for sending and receiving data as either a master or a slave * Highly configurable 10/100 Ethernet Controller that conforms to the IEEE 802.3-2002 specification with full- and half-duplex modes for both 100 Mbps and 10 Mbps operation, and automatic MDI/MDI-X cross-over correction * Three integrated analog comparators configurable for output to drive an output pin or generate an interrupt * Two PWM generator blocks, each with one 16-bit counter, two PWM comparators, a PWM signal generator, a dead-band generator, and an interrupt selector * Quadrature Encoder Interface (QEI) featuring position integrator to track encoder position and velocity capture using built-in timer * Industrial and extended temperature RoHS-compliant 100-pin LQFP package and industrial-range RoHS-compliant 108-ball BGA package
