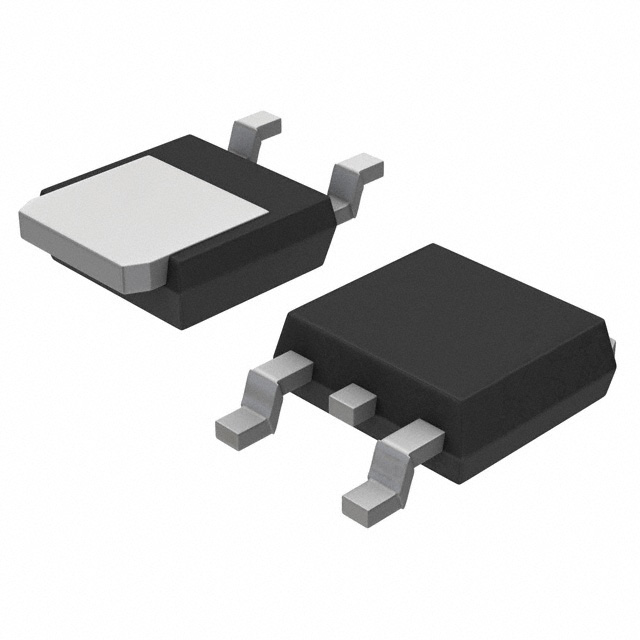

500 mA Adjustable Output, Positive Voltage Regulator
The LM317M is an adjustable three−terminal positive voltage regulator capable of supplying in excess of 500 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow−out proof.
Features
•Output Current in Excess of 500 mA
•Output Adjustable between 1.2 V and 37 V
•Internal Thermal Overload Protection
•Internal Short Circuit Current Limiting
•Output Transistor Safe−Area Compensation
•Floating Operation for High Voltage Applications
•Eliminates Stocking Many Fixed Voltages
•Pb−Free Packages are Available
•NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
