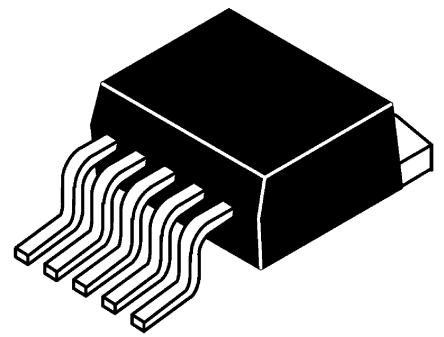

The LM2585S-5.0/NOPB is a Flyback Regulator designed for step-up (boost) and forward converter applications. It requires a minimum number of external components, these regulators are cost effective and simple to use. Included in the datasheet are typical circuits of boost and flyback regulators. Also listed are selector guides for diodes and capacitors and a family of standard inductors and flyback transformers designed to work with these switching regulators. The power switch is a 3A NPN device that can stand-OFF 65V. Protecting the power switch are current and thermal limiting circuits and an undervoltage lockout circuit. This IC contains a 100kHz fixed-frequency internal oscillator that permits the use of small magnetics. Other features include soft start mode to reduce in-rush current during start up, current mode control for improved rejection of input voltage and output load transients and cycle-by-cycle current limiting.
Requires few external components
Family of standard inductors and transformers
Current-mode operation for improved transient response, line regulation and current limit
Internal soft-start function reduces in-rush current during start-up
Output transistor protected by current limit, under voltage lockout and thermal shutdown
