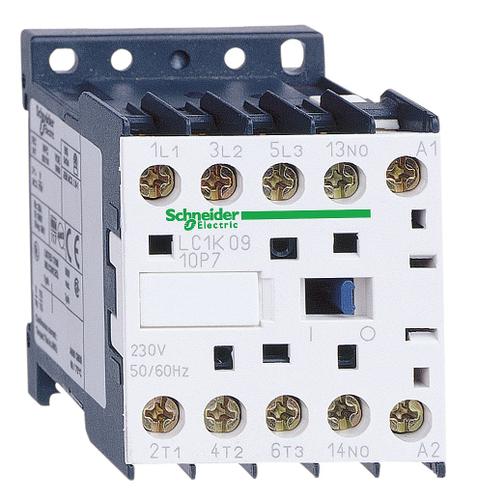

**Schneider Electric TeSys K Series – Compact Contactors and Reversing Contactors up to 7.5kW 400/415V:**
TeSys K is one of the smallest contactor offerings in the market. The range delivers strong performance for its compact size and promises seamless integration in all applications. TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options. The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications.
**Features:**
* Available control circuits: AC, DC, Low-consumption and silent coil
* Applications: 2.2 kW, 4.5 kW, 5.5 kW in AC3 and AC4
* Terminal connection types include:
– Screw clamp
– Faston connectors
– Spring terminals
– Pins for printed circuit boards
* 1 NO or 1NC contact embedded
* Available for 1 way motors, 2 way motors (reversing Contactors) and Star Delta pre- wired version
* Includes full range of control relays in the same design
* Possibility to extend the amount of auxiliary contacts thanks to additional auxiliary contact blocks
* Possibility to protect the motor thanks to additional thermal relays LR2K
* Standards: IEC 60947, NF C 63-110, VDE 0660, BS 5424, UL, CSA, CE and CCC certificates
**Applications:**
* Simple control systems
* Zones sensitive to noise, disturbed mains supplies (silent contactor: LC7K)
* Suitable for use with programmable controller outputs (low-consumption contactor)
* Specific versions for railway ( TeSys S207 ) and electrodomestic (TeSys S335) applications.
