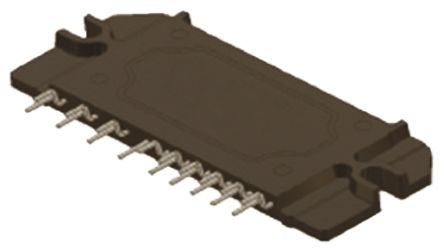

The IRAM136-3063B is an integrated Power Hybrid IC with internal shunt resistor for appliance motor drives applications such air conditioning systems and compressor drivers as well as for light industrial application. IR"s technology offers an extremely compact, high performance AC motor driver in a single isolated package to simplify design. This advanced HIC is a combination of IR"s low VCE(on) punch-through IGBT technology and the industry benchmark 3-phase high voltage, high speed driver in a fully isolated thermally enhanced package. A built-in temperature monitor and overcurrent and overtemperature protections, along with the short-circuit rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and failsafe operation. Using a new developed single in line package with heat spreader for the power die along with full transfer mould structure minimizes PCB space and resolves isolation problems to heat sink.
Integrated gate drivers
Temperature monitor and protection
Overcurrent shutdown
Low VCE(on) advance planar super rugged technology
