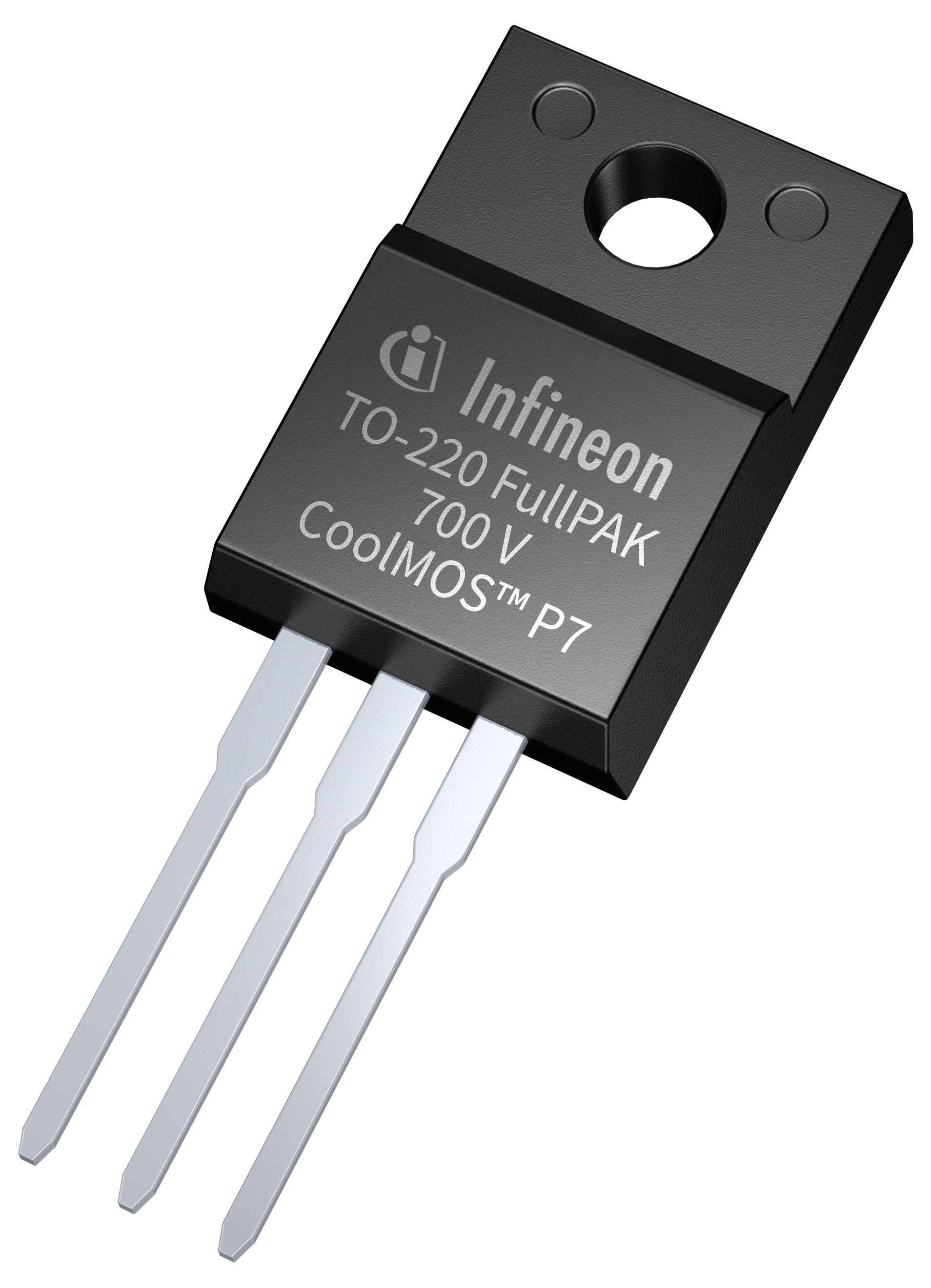

Developed to serve today’s and especially tomorrow’s trends in flyback topologies – the new 700V CoolMOS™ P7 series addresses the low power SMPS market, such as mobile phone chargers or notebook adapters by offering fundamental performance gains compared to superjunction technologies used today. By combining customers’ feedback with over 20 years of superjunction MOSFET experience, 700V CoolMOS™ P7 enables best fit for target applications in terms of:
Efficiency and thermals
Ease-of-use
EMI behavior
Summary of Features:
Extremely low FOM R DS(on) x E oss; lower Q g, E on and E off
Highly performant technology
Low switching losses (E oss)
Highly efficient
Excellent thermal behavior
Allowing high speed switching
Integrated protection Zener diode
Optimized V (GS)th of 3V with very narrow tolerance of ±0.5V
Finely graduated portfolio
Benefits:
Cost competitive technology
Up to 2.4% efficiency gain and 12K lower device temperature compared to C6 technology
Further efficiency gain at higher switching speed
Supporting less magnetic size with lower BOM costs
High ESD ruggedness up to HBM Class 2 level
Easy to drive and design-in
Enabler for smaller form factors and high power density designs
Excellent choice in selecting the best fitting product
