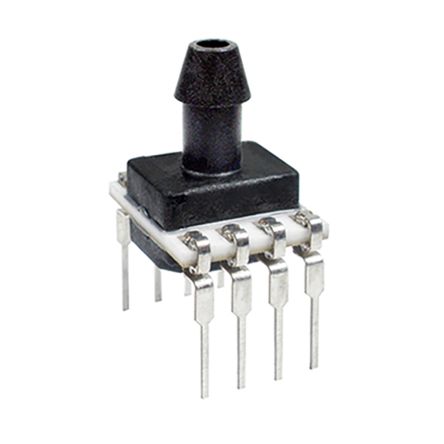

HSCDRRT001PD2A3HoneywellTruStability® Board Mount Pressure Sensor - Compensated/Amplified: HSC Series, High Accuracy, ± 1% Total Error Band, DIP, Dual Radial Barbed Ports, Same Side, 10inH₂O Differential, Amplified Analog Output, 10% to 90% Vdd, 3.3V Supply, Dry Gases Only, No Special Options
￥
357.30
显示的图像仅供参考，应从产品数据表中获得准确的规格。
HSCDRRT001PD2A3Honeywell
制造商:
Honeywell
制造商型号#:
HSCDRRT001PD2A3
百芯编号#:
CM2232426
价格(CNY):
￥
357.30
百芯库存:
343
个
库存地点:
可供应量:
194
个在库
此为供应商库存，需要与销售确认
产品类别:
压力,传感器
产品描述:
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: HSC Series, High Accuracy, ± 1% Total Error Band, DIP, Dual Radial Barbed Ports, Same Side, 10inH₂O Differential, Amplified Analog Output, 10% to 90% Vdd, 3.3V Supply, Dry Gases Only, No Special Options
The TruStability® High Accuracy Silicon Ceramic (HSC) Series is a piezoresistive silicon pressure sensor offering a digital output for reading pressure over the specified full scale pressure span and temperature range.
The HSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 2 kHz.
