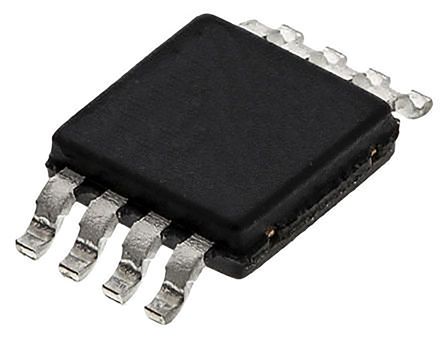

The HMC423MS8E is a Double-balanced Mixer IC with integrated LO amplifier. This mixer can operate as an up-converter or down-converter between 0.6 and 1.3GHz. With the integrated LO amplifier, the mixer requires an LO drive level of only 0dBm and requires only 15mA from a single positive +3V rail. The mixer has 8dB of conversion loss, an input P1dB of +8dBm and an input third order intercept point of +15dBm at 1.3GHz.
Integrated LO amplifier with <50mW Power dissipation
