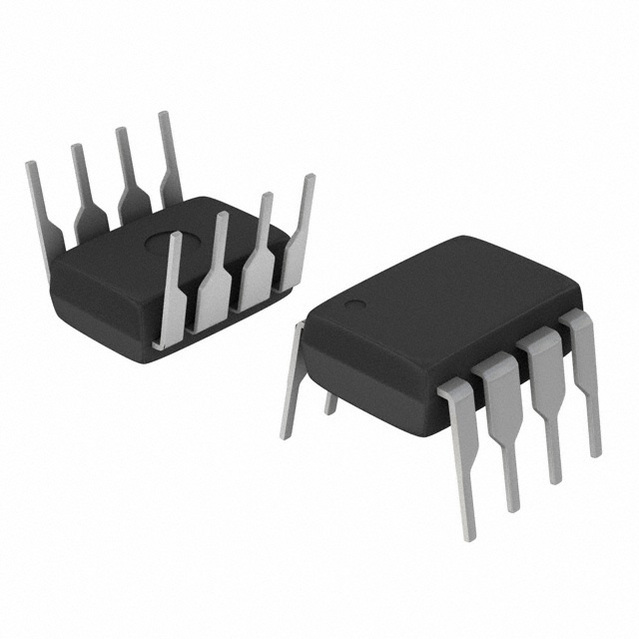

The FSQ100 consists of an integrated Pulse Width Modulator (PWM) and SenseFET, specifically designed for high-performance, off-line, Switch-Mode Power Supplies (SMPS) with minimal external components. This device is an integrated high-voltage power switching regulator that combines a VDMOS SenseFET with a voltage mode PWM control block. The integrated PWM controller features include a fixed oscillator, Under-Voltage Lockout (UVLO) protection, Leading
Edge Blanking (LEB), an optimized gate turn-on/turn-off driver, Thermal Shutdown (TSD) protection, and temperature-compensated precision-current sources for loop compensation and fault protection circuitry.
Features
Internal Avalanche-Rugged SenseFET
Precision Fixed Operating Frequency (67KHz)
Burst-Mode Operation
Internal Start-up Circuit
Pulse-by-Pulse Current Limiting
Over-Voltage Protection (OVP)
Overload Protection (OLP)
Internal Thermal Shutdown Function (TSD)
Auto-Restart Mode
Under-Voltage Lockout (UVLO) with Hysteresis
Built-in Soft Start
Secondary-Side Regulation
Applications
Charger & Adapter for Mobile Phone, PDA, MP3
Auxiliary Power for White Goods, PC, C-TV, Monitor
