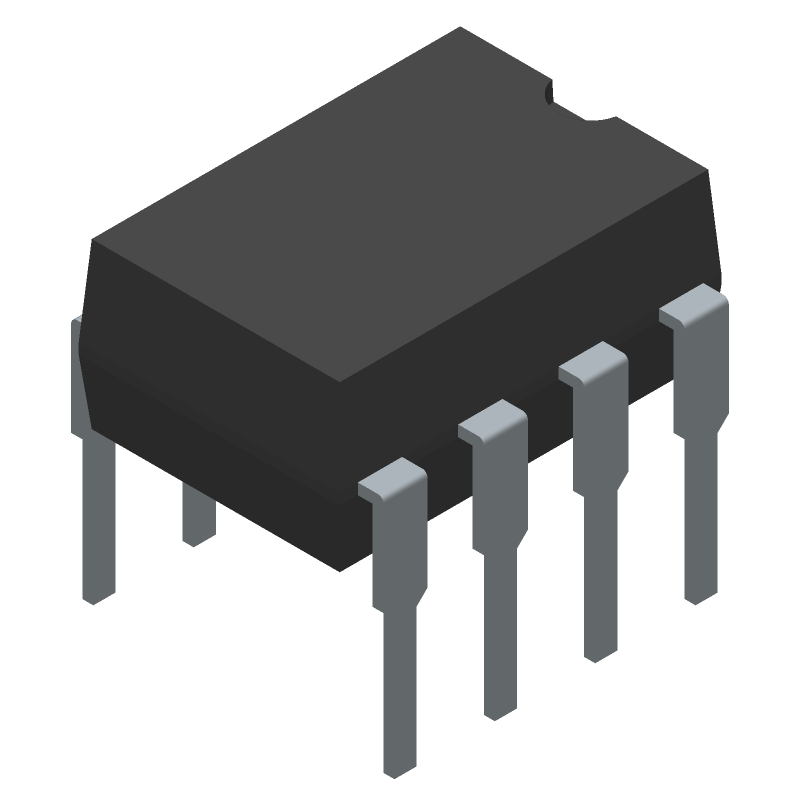

The FOD3150 is a 1.0A output current gate drive optocoupler, capable of driving most 800V/20A IGBT/MOSFET. It is ideally suited for fast switching driving of power IGBT and MOSFETs used in motor control inverter applications, and high performance power system.It utilizes Fairchild’s proprietary coplanar packaging technology, Optoplanar®, and optimized IC design to achieve high noise immunity, characterized by high common mode rejection.It consists of a gallium aluminum arsenide (AlGaAs) light emitting diode optically coupled to an integrated circuit with a high-speed driver for push-pull MOSFET output stage.
Features
---
|
High noise immunity characterized by 20kV/µs minimum common mode rejection
Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail
Wide supply voltage range from 15V to 30V
Fast switching speed
500ns max. propagation delay
300ns max. pulse width distortion
Under-Voltage LockOut (UVLO) with hysteresisExtended industrial temperate range, -40°C to 100°C temperature range
Safety and regulatory pending approvals
UL1577, 5000 V RMS for 1 min.
IEC60747-5-2 (approval pending)
>8.0mm clearance and creepage distance (option ‘T’)
