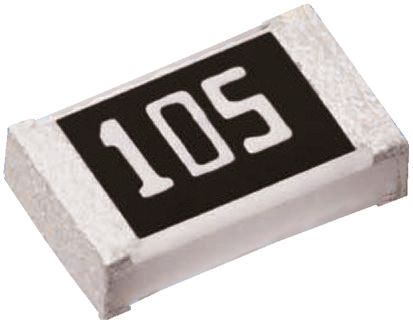

The Panasonic ERA series type 3A resistors are highly reliable, automotive grade metal film chip resistors based on thin film technology. The resistance range includes E24 and E96 decade values from 10 ohm to 330Kohm. ERA series high accuracy metal thin film chip resistors have small resistance tolerance and temperature coefficient of resistance, low current noise and excellent linearity. These high performance resistors are stable at high temperature and humidity.
EIA 0603 case size
Automotive grade AEC-Q200 qualified
Meets IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B standards
85°C 85% RH rated load
Maximum power rating of 100mW
Available in ±0.05%, ±0.1%, ±0.25% and ±0.5% tolerance
