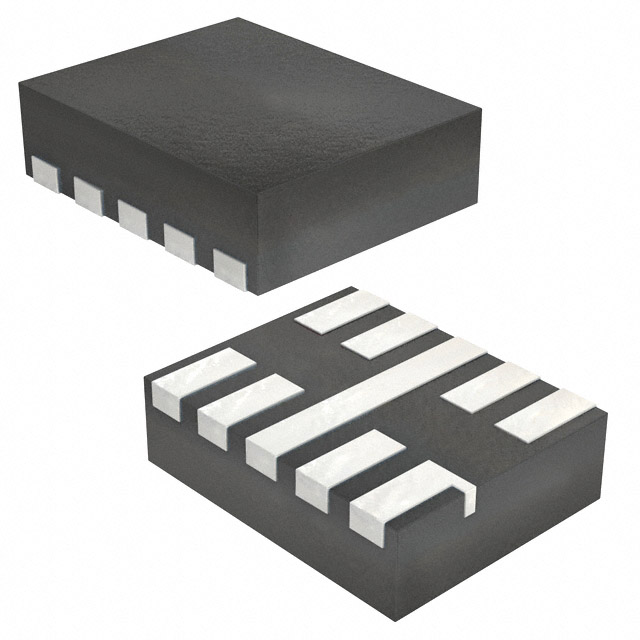

The EMI4182MU is an integrated common mode filter providing both ESD protection and EMI filtering for high speed digital serial interfaces such as HDMI or MIPI D-PHY.The EMI4182MU provides protection for two differential data line pairs in a small RoHS-compliant UDFN10 package.
Features | | Benefits
---|---|---
| | | | |
Highly Integrated Common Mode Filter (CMF) with ESD Protection
| |
Provides protection and EMI reduction for systems using High Speed
Serial Data Lines with cost and space savings over discrete solutions
Large Differential Mode Bandwidth with Cutoff Frequency > 2 GHz
| |
High Common Mode Stop Band Attenuation: >25 dB at 700 MHz,
