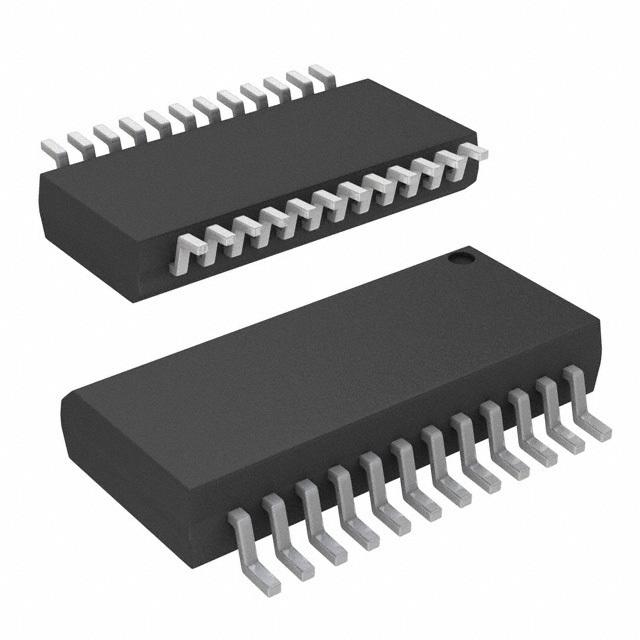

The EL5173 and EL5373 are single and triple high bandwidth amplifiers with a fixed gain of 2. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form.
The output common mode level for each channel is set by the associated REF pin, which have a -3dB bandwidth of over 190MHz. Generally, these pins are grounded but can be tied to any voltage reference.
Features
• Fully differential inputs and outputs
• Differential input range ±2.3V
• 450MHz 3dB bandwidth at fixed gain of 2
• 900V/µs slew rate (EL5173)
• 1100V/µs slew rate (EL5373)
• Single 5V or dual ±5V supplies
• 40mA maximum output current
• Low power - 12mA per channel
• Pb-free available (RoHS compliant)
Applications
• Twisted-pair drivers
• Differential line drivers
• VGA over twisted-pairs
• ADSL/HDSL drivers
• Single ended to differential amplification
• Transmission of analog signals in a noisy environment
