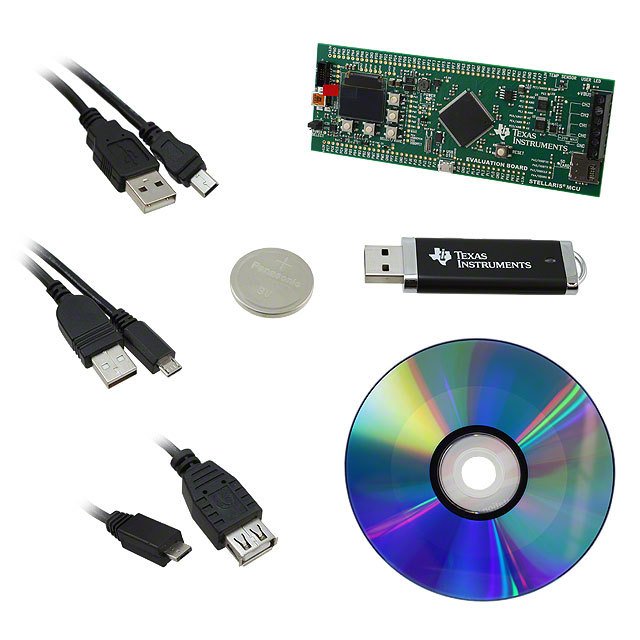

The Stellaris EKS-LM4F232 USB+CAN Evaluation Kit for Code Composer Studio is a compact and versatile evaluation platform for the Stellaris LM4F232 ARM Cortex-M4F based microcontroller. The evaluation kit design highlights the LM4F232 microcontroller"s integrated USB 2.0 On-the-Go/Host/Device interface, CAN, Analogue and low-power capabilities. The evaluation kit features a Stellaris microcontroller in a 144-LQFP package, a colour OLED display, USB OTG connector, a MicroSD card slot, a coin cell battery for use with the Stellaris low-power Hibernate mode, a temperature sensor, a three-axis accelerometer for motion detection and easy access through holes to all of the available device signals. The kit also includes extensive source code examples, allowing user to start building C code applications quickly. A board-locked, fully functional version of Code Composer Studio (CCStudio) Integrated Development Environment (IDE).
Uses Stellaris LM4F232H5QD with 256KB internal Flash, Excellent prototyping capability
