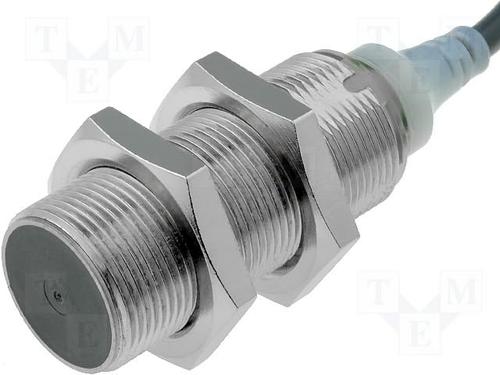

The E2A-M18KS08-WP-B1 5M from Omron Industrial Automation is an E2A series cylindrical proximity sensor. It has a safe mounting with greater sensing distance approximately 1.5 to 2 times larger than that of any conventional Omron sensor. This cylindrical proximity sensor uses high-frequency oscillations. It resists heat, chemicals and water better than rectangular sensors.
Standard, M18, short barrel, shielded,
Cylindrical, metric threaded, brass housing
Sensing distance is 8mm
Pre wired, PVC connection
DC power source, 3 wire, PNP open collector output
Operating mode is normally open (NO)
Power supply voltage range from 12VDC to 24VDC
Yellow LED for indication, 5m cable length
Insulation resistance is 50Mohm min at 500VDC, dielectric strength is 1000VAC at 50/60Hz
Approved by IEC60529, EN60947-5-2 standards, water resistance IP67
