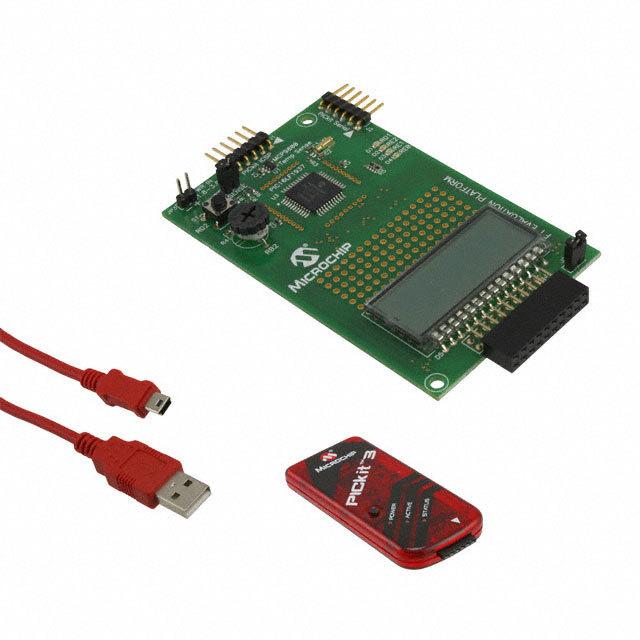

The DV164132 is a F1 evaluation kit. It is a demonstration/development tool for enhanced mid-range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx) and includes the PICkit-3 for quick programming and development. Populated with a PIC16LF1937 featuring XLP technology, this platform consists of a 44-pin development board with prototyping space, 3V LCD glass, support for the motor control add-on (DM164130-2) and support for PICkit-3 & PICkit serial. This kit provides a platform for general purpose development and includes demonstrations focusing on low Power, LCD and motor control. Quick & easy development is ensured with the integrated functionality including prototyping area, LCD control, system current monitoring, temperature sensing, Real time clock, LED drive, button control and BLDC motor control.
44-pin development board with generous prototyping area
Populated with a PIC16LF1937 featuring NanoWatt XLP technology
3 Volt, 40 segment Multimeter LCD glass
Potentiometer, LEDs, Mechanical button
MCP9800 temperature sensor
32KHz low power crystal
Current monitoring connector to measure low power XLP capabilities
in circuit serial programming interface for PICkit3
PICkit serial interface
Expansion header for F1 BLDC motor add-on
The PICkit 3 In-Circuit Debugger/Programmer is NOT a production programmer. It should be used for development purposes only.
