DS1859Maxim IntegratedDual, Temperature-Controlled Resistors with Internally Calibrated MonitorsNew 20kΩ Option for Popular DS1859 SFP Optical Control/Monitor Provides Higher Control Resolution
￥
58.95
显示的图像仅供参考，应从产品数据表中获得准确的规格。
DS1859Maxim Integrated
制造商:
Maxim Integrated
制造商型号#:
DS1859
百芯编号#:
CM763822662
价格(CNY):
￥
58.95
百芯库存:
67
个
库存地点:
可供应量:
64
个在库
此为供应商库存，需要与销售确认
产品描述:
Dual, Temperature-Controlled Resistors with Internally Calibrated MonitorsNew 20kΩ Option for Popular DS1859 SFP Optical Control/Monitor Provides Higher Control Resolution

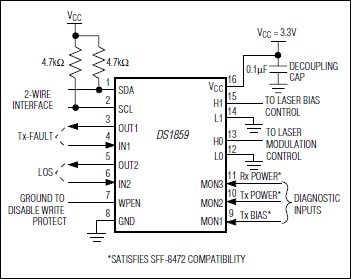

The DS1859 dual, temperature-controlled, nonvolatile (NV) variable resistors with three monitors consists of two 50kΩ or two 20kΩ, 256-position, linear, variable resistors; three analog monitor inputs (MON1, MON2, MON3); and a direct-to-digital temperature sensor. The device provides an ideal method for setting and temperature- compensating bias voltages and currents in control applications using minimal circuitry. The variable resistor settings are stored in EEPROM memory and can be accessed over the 2-wire serial bus.
