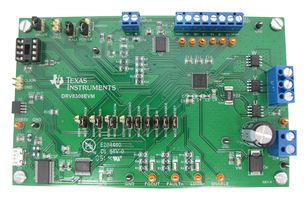

The DRV8308EVM is an Evaluation Module for evaluate the operation and performance of DRV8308 three-phase brushless motor pre-driver. The DRV8308 drives sensored brushless DC and brushless AC (BLAC) - often referred to as permanent magnet synchronous (PMSM). Aimed at 12V and 24V motors, this configurable pre-driver features an integrated digital speed loop with advanced commutation timing and control. The board serves as an user-friendly evaluation kit that allows users to control the DRV8308 and motors through a windows graphical user interface. The board is a high-performance, power-efficient platform that speeds development for quicker time to market.
Easy to use hardware and windows GUI
The included motor gets you spinning fast
Jumper configuration for hall power and signal type and SPI/EEPROM modes
Connections to the on-board MCU can be disconnected for external control
Supports 8.5 to 32V and 5A power, current can be increased by changing RSENSE
