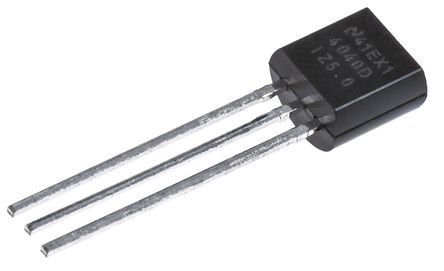

* Digital Bipolar-Latch Hall Sensor * Superior Temperature Stability * BOP ±10% Over Temperature * High Sensitivity Options (BOP and BRP) * +2.7 / –2.7 mT (AD) * +6 / –6 mT (AG) * +12 / –12 mT (BC) * Supports a Wide Voltage Range * 2.5 to 38 V * No External Regulator Required * Wide Operating Temperature Range * TA = –40 to 125°C (Q) * Open Drain Output (30-mA Sink) * Fast 35-µs Power-On Time * Small Package and Footprint * Surface Mount 3-Pin SOT-23 (DBZ) * 2.92 mm × 2.37 mm * Through-Hole 3-Pin SIP (LPG) * 4.00 mm × 3.15 mm * **Protection Features** * Reverse Supply Protection (up to –22 V) * Supports up to 40-V Load Dump * Output Short-Circuit Protection * Output Current Limitation
