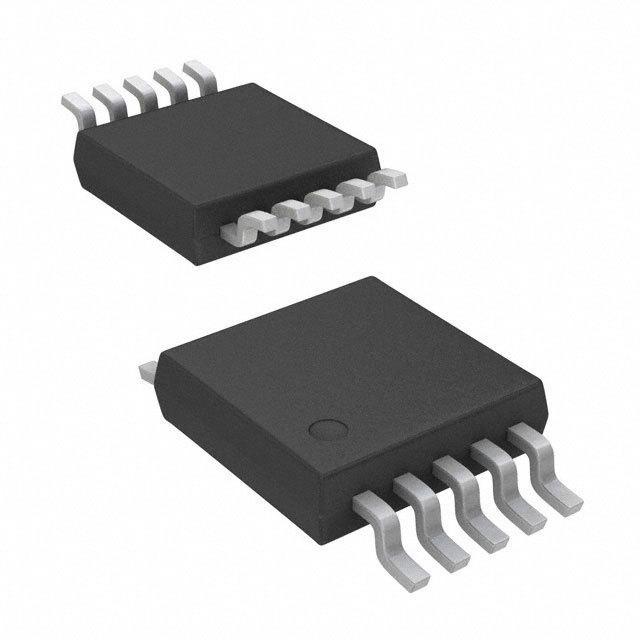

The DRV2605LDGST is a low-voltage Haptic Driver which includes a haptic-effect library and provides a closed-loop actuator-control system for high-quality haptic feedback for ERM and LRA. The device offers a licensed version of TouchSense 2200 software from Immersion which eliminates the need to design haptic waveforms because the software includes over 100 licensed effects (6 ERM libraries and 1 LRA library) and audio- to-vibe features. The DRV2605L device also features automatic transition to an open-loop system in the event that an LRA actuator is not generating a valid back-EMF voltage. When the LRA generates a valid back-EMF voltage, the DRV2605L device automatically synchronizes with the LRA. The DRV2605L also allows for open-loop driving through the use of internally-generated PWM.
I²C-controlled digital playback engine
Waveform sequencer and trigger
Real-time playback mode through I²C
I²C Dual-mode drive (Open and Closed loop)
Smart-loop architecture
Automatic overdrive and braking
Automatic actuator diagnostic
Automatic level calibration
Wide support for actuator models
Drive compensation over battery discharge
Efficient differential switching output drive
PWM input with 0% to 100% duty-cycle control range
