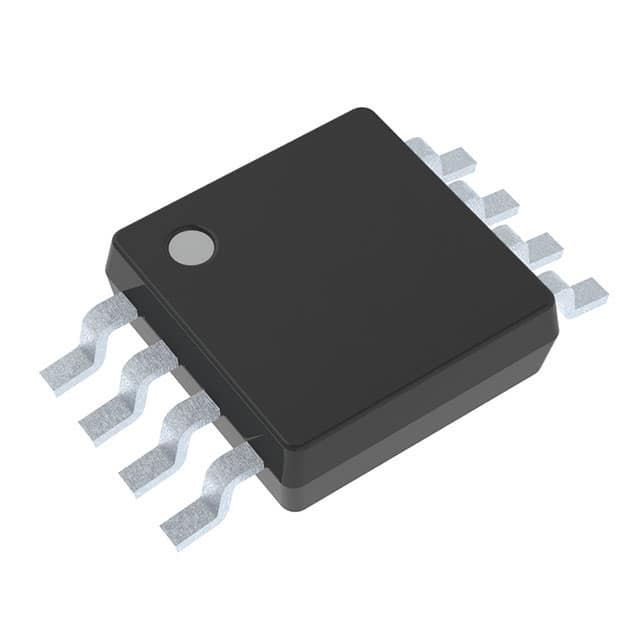

The DAC8551IADGKTG4 is a small low-power voltage output 16-bit Digital-to-analog Converter (DAC) provides good linearity and minimizes undesired code-to-code transient voltages. The DAC8551 uses a versatile 3-wire serial interface that operates at clock rates to 30MHz and is compatible with standard SPI™, QSPI™, MICROWIRE™ and digital signal processor (DSP) interfaces. The DAC8551 requires an external reference voltage to set its output range. The DAC8551 incorporates a power-on-reset circuit that ensures the DAC output powers up at 0V and remains there until a valid write takes place to the device. The DAC8551 contains a power-down feature, accessed over the serial interface that reduces the current consumption of the device to 200nA at 5V. The low-power consumption of this device in normal operation makes it ideally suited for portable, battery-operated equipment. The power consumption is 0.38mW at 2.7V, reducing to less than 1µW in power-down mode.
Relative accuracy - 3LSB
Glitch energy - 0.1nV-s
Power-on reset to 0
Settling time - 10µs to ±0.003%FSR
Low-power serial interface with Schmitt-triggered inputs
On-chip output buffer amplifier with rail-to-rail operation
