DAC7716SPFBTIDigital to Analog Converter Quad 12Bit High Accuracy +/-16.5V Output Serial Input Digital-To-Analog Converter DAC 4CH R-2R 12Bit 48Pin TQFP
￥
68.95

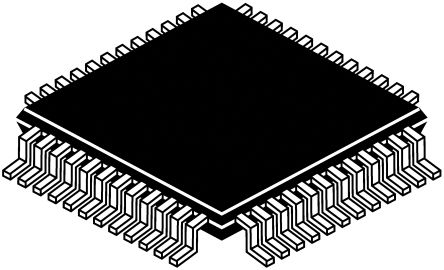

显示的图像仅供参考，应从产品数据表中获得准确的规格。
DAC7716SPFBTI
制造商:
TI
制造商型号#:
DAC7716SPFB
百芯编号#:
CM26207033
价格(CNY):
￥
68.95
百芯库存:
255
个
库存地点:
可供应量:
184
个在库
此为供应商库存，需要与销售确认
产品类别:
DA转换器,数模
产品描述:
Digital to Analog Converter Quad 12Bit High Accuracy +/-16.5V Output Serial Input Digital-To-Analog Converter DAC 4CH R-2R 12Bit 48Pin TQFP
The DAC7716 is a high-accuracy, quad-channel, 12-bit digital-to-analog converter (DAC) that operates from supply voltages of ±5V to ±18V in bipolar output mode, and from ±5V to +24V/-12V in unipolar mode. With a 5V reference, the DAC7716 can be configured to output ±10V, ±5V, 0V to 20V, or 0V to 10V. The DAC7716 provides 12-bit monotonicity, excellent integral nonlinearity (INL) error of ±1 LSB, low glitch, and low noise over the operating temperature range of -40°C to +105°C. This device is trimmed in production for very low zero and gain errors. In addition, the DAC7716 implements a user-programmable system-level calibration function to achieve ±0.0078 LSB zero error and ±0.0625 LSB gain error.
The DAC7716 has integrated reference buffers and output buffers. It features a standard high-speed 1.8V, 3V, or 5V serial peripheral interface (SPI) that operates at clock rates of up to 50MHz to communicate with a DSP or microprocessor. The four DAC channels and the auxiliary registers are addressed with four address bits. The device features double-buffered interface logic for simultaneous updates of all DACs. An asynchronous load input (LDAC) transfers data from the input data register to the DAC latch, and the contents of the DAC latch set the output voltage. The asynchronous RST input sets the output of all four DACs to 0V. The VMON pin is an analog monitor output that multiplexes the individual DAC outputs or the AIN pin.
The DAC7716 is pin-compatible with the DAC8734 (16-bit) and the DAC8234 (14-bit).
