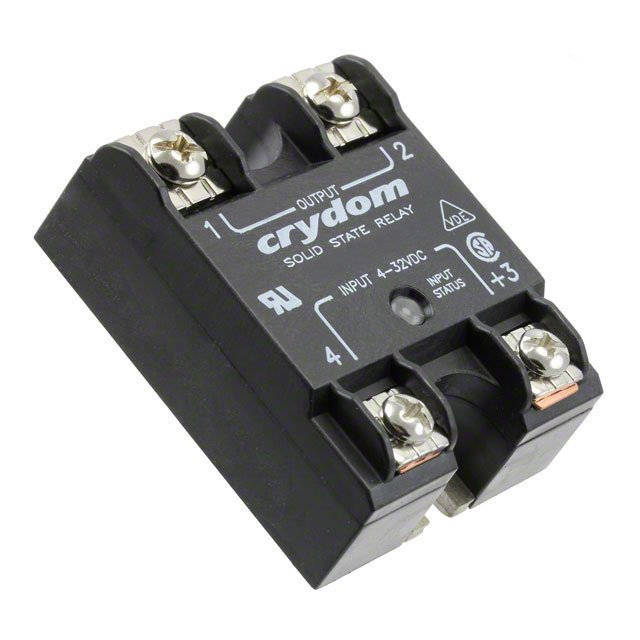

The D2425PG is a Solid State Relay with aluminium base plate, 94V-0 housing, overvoltage protection, input status LED and screw terminals. This series-1 panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barriers. Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.
Epoxy-free design
AC or DC Control
SCR output for heavy industrial loads
1.15Vrms Maximum on-state voltage drop
4000Vrms Dielectric strength
Current regulated nominal input impedance
1/2 cycle ms Turn-on/off maximum time
-40 to 80°C Ambient operating temperature range
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
