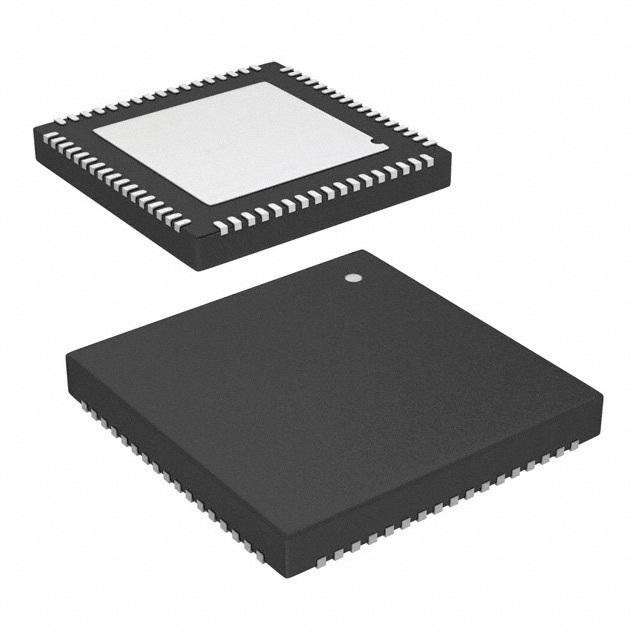

The CY8C5867LTI-LP025 is a true programmable Embedded System-on-chip, integrating configurable analog and digital peripherals, memory and a microcontroller on a single chip. The PSoC device employ a highly configurable system-on-chip architecture for embedded control design. It integrate configurable analog and digital circuits, controlled by an on-chip microcontroller. A single PSoC device can integrate as many as 100 digital and analog peripheral functions, reducing design time, board space, power consumption and system cost while improving system quality. The CY8C58LP device includes up to 256kB flash, 64kB SRAM, 2kB EEPROM, a precision on-chip voltage reference, precision oscillators, flash, ECC, DMA, a fixed function I²C, JTAG/SWD programming and debug, external memory interface, boost and more. In addition to these features, the flexible UDBs and analog subsection support a wide range of peripherals.
Halt and single-step the CPU
View and change CPU and peripheral registers and RAM addresses
Six program address breakpoints and two literal access breakpoints
Data watchpoint events to CPU
Patch and remap instruction from flash to SRAM
Debugging at the full speed of the CPU
Compatible with PSoC creator and MiniProg3 programmer and debugger
32-bit ARM Cortex-M3 CPU, 32 interrupt inputs
24-channel Direct memory access (DMA) controller
24-bit 64-tap Fixed-point digital filter processor (DFB)
Up to 256kB program flash, with cache and security features
Up to 32kB additional flash for error correcting code (ECC)
