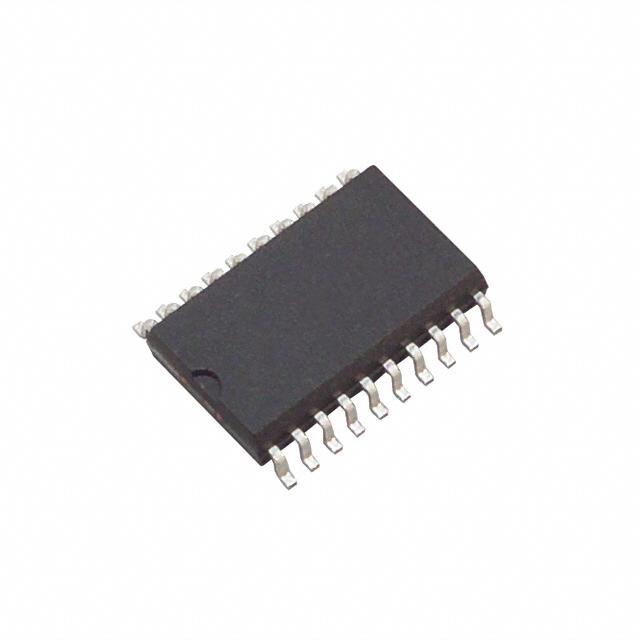

The CD74HCT541M is a non-inverting Octal Buffers/Line Driver with 3-state outputs that can drive 15 LSTTL loads. The output enables (OE1\\) and (OE2\\) control the 3-state outputs. If either OE1\ or OE2\ is HIGH the outputs will be in the high impedance state. For data output OE1\ and OE2\ both must be LOW.
Buffered inputs
Bus line driving capability
Balanced propagation delay and transition times
Significant power reduction compared to LSTTL logic ICs
Direct LSTTL input logic compatibility, VIL = 0.8V Maximum, VIH = 2V minimum
CMOS input compatibility, Il
Typical propagation delay tPLH, tPHL = 8ns at VCC =5V, CL = 15pF, TA = 25°C
