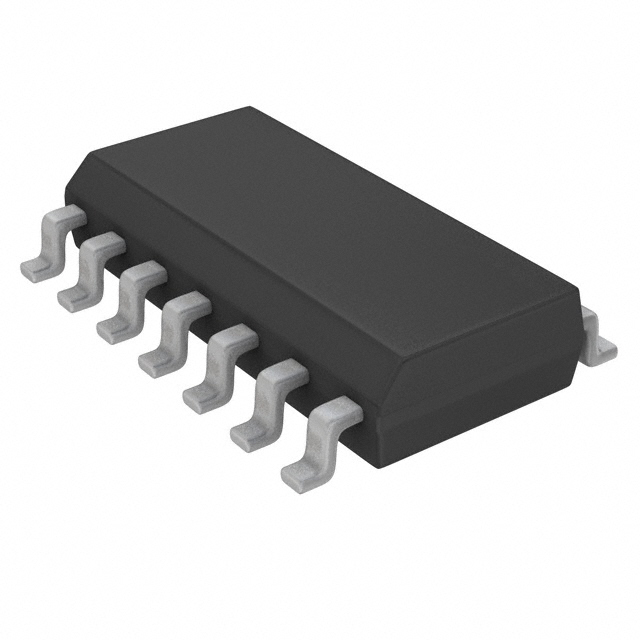

The CD4016BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066BC.
Features
■Wide supply voltage range: 3V to 15V
■Wide range of digital and analog switching: ±7.5 VPEAK
■“ON” Resistance for 15V operation: 400Ω(typ)
■Matched “ON” Resistance over 15V signal input:
∆*R**ON =10Ω(typ)
■High degree of linearity:
0.4% distortion (typ)
@ fIS =1 kHz, VIS =5 Vp-p,
**V**DD−**V**SS =10V, RL =10 kΩ
■Extremely low “OFF” switch leakage:
0.1 nA (typ.)
@ VDD −VSS =10V
**T**A =25°C
■Extremely high control input impedance: 10(12)Ω(typ)
■Low crosstalk between switches:−50 dB (typ.)
@ fIS =0.9 MHz, RL =1 kΩ
■Frequency response, switch “ON”: 40 MHz (typ)
Applications
• Analog signal switching/multiplexing
Signal gating
Squelch control
Chopper
Modulator/Demodulator
Commutating switch
• Digital signal switching/multiplexing
• CMOS logic implementation
• Analog-to-digital/digital-to-analog conversion
• Digital control of frequency, impedance, phase, and
