The CC2530ZDK is a CC2530 based second generation ZigBee/IEEE 802.15.4 compliant system on chip with an optimized 8051 MCU core and radio for the 2.4GHz unlicensed ISM/SRD band development kit. This device enables industrial grade applications by offering state of the art noise immunity, excellent link budget, operation up to 125 degrees and low voltage operation. In addition, the CC2530 provides extensive hardware support for packet handling, data buffering, burst transmissions, data encryption, data authentication, clear channel assessment, link quality indication and packet timing information. Z stack is ZigBee compliant protocol stack for a growing portfolio of IEEE 802.15.4 products and platforms. Z-Stack support the CC2530 and is compliant with both the ZigBee 2007 and ZigBee 2006 specification. The CC2530 ZigBee development kit is well suited for demonstration, evaluation and software development targeting IEEE 802.15.4 and ZigBee compliant applications with the CC2530.
ZigBee stack, Z-Stack

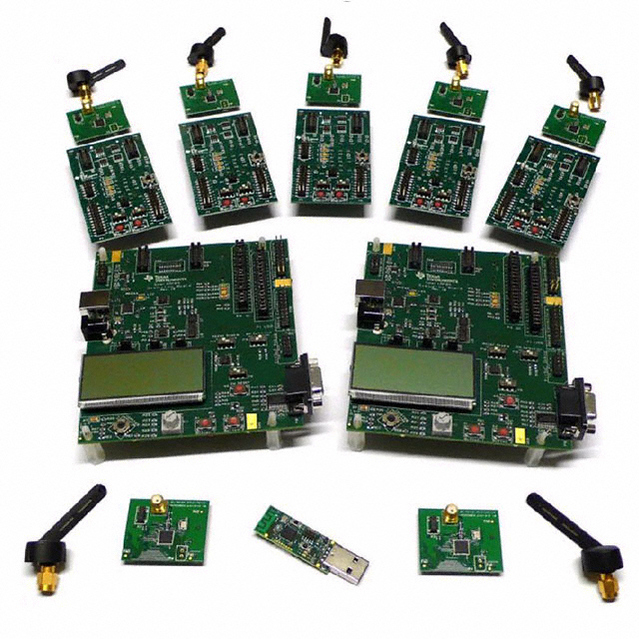

Two SmartRF05 evaluation boards
Five smartRF05 battery boards
Seven CC2530 evaluation modules
One CC1531 USB dongle
Antennas and batteries
IAR EW8051 C compiler with C SPY debugger (30+30 day evaluation license)
