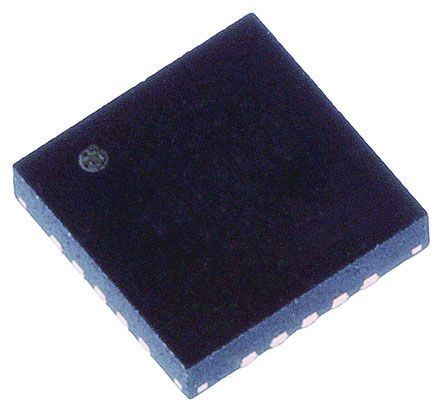

The CC110LRGPT is a sub-1GHz RF Value Line Transceiver for the 300 to 348, 387 to 464 and 779 to 928MHz frequency bands. The circuit is based on the popular CC1101 RF transceiver and RF performance characteristics are identical. Two CC110L transceivers together enable a bidirectional RF link. The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 600kbps. The CC110L provides extensive hardware support for packet handling, data buffering and burst transmissions. The main operating parameters and the 64-byte receive and transmit FIFOs of CC110L can be controlled through a serial peripheral interface (SPI). In a typical system, the CC110L will be used together with a microcontroller and a few additional passive components.
Programmable output power up to +12dBm
Receive sensitivity down to -116dBm at 0.6kbps
Programmable data rate from 0.6 to 600kbps
2-FSK, 4-FSK, GFSK, MSK and OOK supported
On-chip support for sync word insertion, flexible packet length and automatic CRC calculation
200nA Sleep mode current consumption
Fast startup time, 240µs from sleep to RX or TX mode
64bytes RX and TX FIFO
High sensitivity
20dBm Output power at 868MHz
26dBm Output power at 915MHz
Support for asynchronous and synchronous serial transmit mode for backward compatibility
