The CAT93C46B is a 1-Kb Serial EEPROM memory device which is configured as either 64 registers of 16 bits (ORG pin at VCC) or 128 registers of 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The CAT93C46B features a self-timed internal write with auto-clear. On-chip Power-On Reset circuit protects the internal logic against powering up in the wrong state.
Features
---
|
High Speed Operation: 4 MHz (5 V), 2 MHz (1.8 V)
1.8 V (1.65 V for CAT93C46BxxxxL / TA = -20°C to +85°C) to 5.5 V Supply Voltage Range
Selectable x8 or x16 Memory Organization
Self-Timed Write Cycle with Auto-Clear
Sequential Read
Software Write Protection
100 Year Data Retention
Low Power CMOS Technology
1,000,000 Program/Erase Cycles
Powerup Inadvertant Write Protection
Industrial and Extended Temperature Ranges

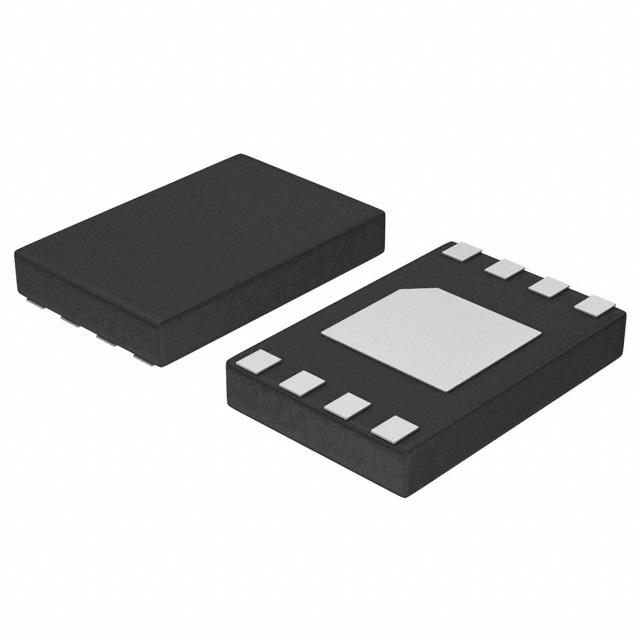

8-pin PDIP, SOIC, TSSOP and 8-pad UDFN and TDFN Packages
This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant
