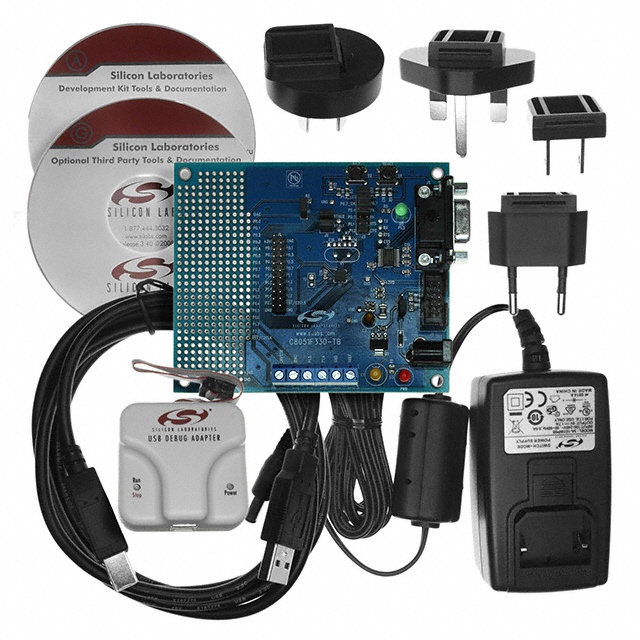

C8051F330DK MCU development kit is designed for C8051F330 microcontroller. The C8051F330 small MCU device available in 20 pin package include up to 16kB flash with 10bit ADC and 10bit DAC. With on chip Power On Reset, VDD monitor, Watchdog Timer and clock oscillator, the C8051F330 device is truly stand alone System on a Chip solutions. The flash memory of these small MCUs can be reprogrammed even in circuit, providing non volatile data storage, and also allows field upgrades of the 8051 firmware. User software has complete control of all peripherals and may individually shut down any or all peripherals for power savings.
Pipelined instruction architecture, executes 70% of instructions in 1 or 2 system clocks
Expanded interrupt handler
17 port I/O, all are 5V tolerant
Hardware SMBus (I2C compatible), SPI, and UART serial ports available concurrently
On chip debug circuitry facilitates full speed, non intrusive in system debug (no emulator required)
Provides breakpoints, single stepping, watch point
Inspect/modify memory, registers, and stack
Superior performance to emulation systems using ICE chips, target pods, and sockets
