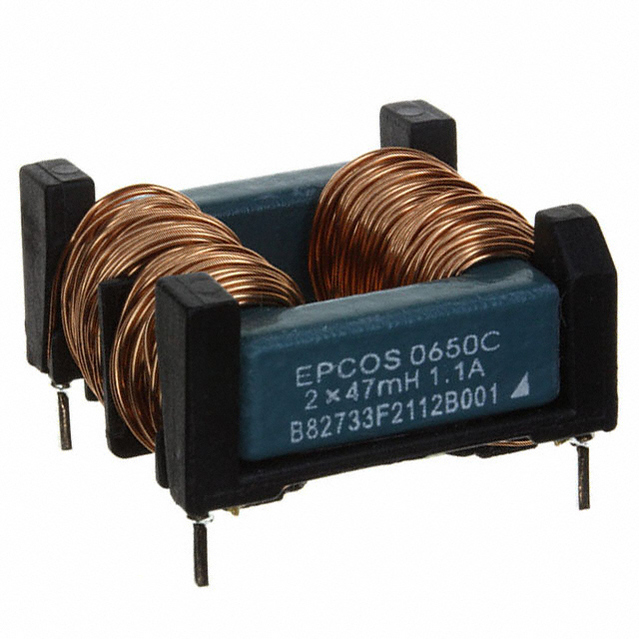

The B82733F2112B001 is a 1.1A current-compensated Frame Core Choke suitable for wave soldering. Closed magnetic circuit with frame construction made of epoxy coating ferrite and 2-section winding, plastic coil former and sector winding, hot dipped base PC wire terminals.
High inductance with low resistance
Approximate 2% stray inductance for symmetrical interference suppression
High pulse-handling capability
Very good inductance/rated current ratio
Design complies with EN 60938-2 and UL 1283
Ferrites are sensitive to direct impact. This can cause the core material to flake or lead to breakage of the core.
