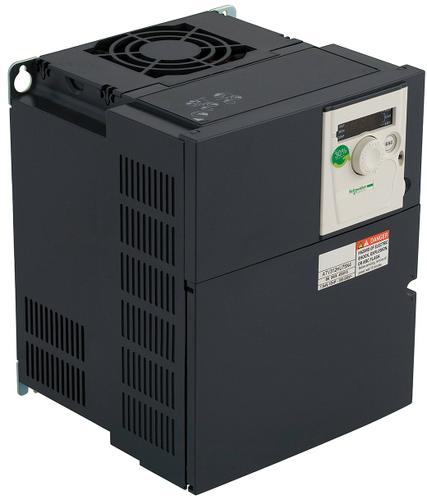

The ATV312HU30N4 from Schneider Electric is a three phase, variable speed asynchronous motor drive with 3KW power and integrated EMC filter. This simple machine works at rated supply voltage ranging from 380V to 500V and standard dimension of 184mm height, 142mm width and 152mm depth.
CANopen Modbus communication port protocol
1 RJ45 Modbus/CANopen connector and RS485 multidrop serial link physical interface
Featured with heat sink assembly
Power dissipation of 125W at nominal load
Supply frequency of 50Hz to 60Hz and nominal switching frequency of 4kHz
Product weight is 3.1Kg
Vertical operating position
IEC 61800-3, IEC 61800-5-1 standard and CSA, C-Tick, DNV, GOST, NOM and UL certified
IP41, IP31 on upper part, IP21 on connection terminals and IP20 on upper part without cover plate
Ambient air temperature for operation range from -10°C to 60°C with derating factor
