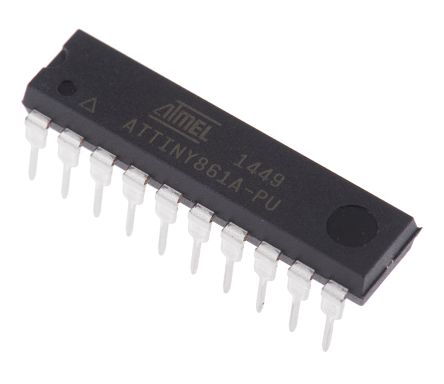

The ATTINY861A-PU is a 8-bit high-performance picoPower AVR RISC-based Microcontroller combines 8kB flash memory, 512B EEPROM, 512B SRAM, 16 general purpose I/O lines, 32 general purpose working registers, an 8-bit timer/counter with compare modes, an 8-bit high speed timer/counter, a universal serial interface (USI), internal and external Interrupts, an 11-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator and four software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Advanced RISC architecture - 123 powerful instructions, most single clock cycle execution
High endurance, non-volatile memory segments
Peripheral features - 8/16-bit timer/counter with prescaler
debugWIRE on-chip debug system
Power-on reset (POR) and programmable brown-out detection
Internal calibrated oscillator
External and internal interrupt sources
Four sleep modes, low power idle, ADC noise reduction, standby and power-down
