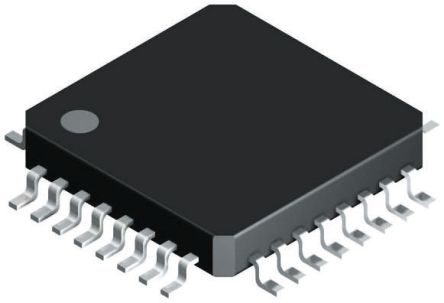

The ATMEGA88P-20AU is a high-performance picoPower 8-bit AVR RISC-based Microcontroller combines 8kB ISP flash memory with read-while-write capabilities, 512byte EEPROM, 1kB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timers/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, 6-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator and five software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using Atmel"s high density nonvolatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface.
Advanced RISC architecture
Power-on reset and programmable brown-out detection
Internal calibrated RC oscillator
External and internal interrupt sources
Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby
131 Powerful instructions-most single clock cycle execution
32 x 8 General purpose working registers
Fully static operation
Up to 20MIPS throughput at 20MHz
On-chip 2-cycle multiplier
QTouch® library support
Programmable watchdog timer with separate on-chip oscillator
On-chip analog comparator
Interrupt and wake-up on pin change
Two 8-bit timers/counters with separate prescalers and compare modes
One 16-bit timer/counter with separate prescaler, compare mode and capture mode
