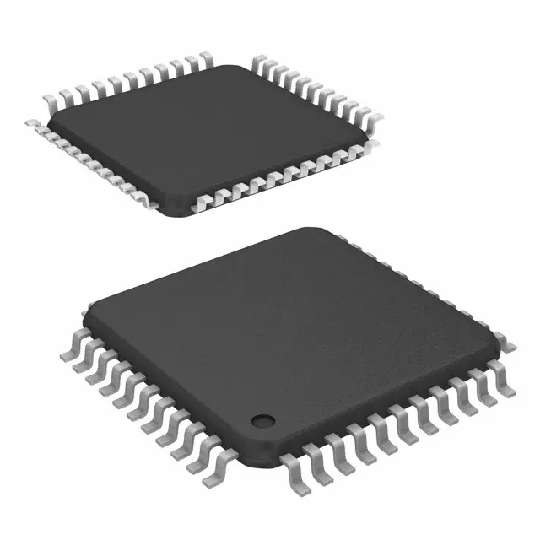

The ATMEGA324PV-10AU is a high-performance picoPower 8-bit AVR RISC-based Microcontroller combines 32kB ISP flash memory with read-while-write capabilities, 1kB EEPROM, 2kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, real time counter, three flexible timers/counters with compare modes and PWM, 2 USARTs, byte oriented 2-wire serial interface, 8-channel/10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, JTAG (IEEE 1149.1 compliant) interface for on-chip debugging and programming and six software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processor speed. The device is manufactured using Atmel"s high density nonvolatile memory technology.
Advanced RISC architecture
Power-on reset and programmable brown-out detection
Internal calibrated RC oscillator
External and internal interrupt sources
Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby
131 Powerful instructions-most single clock cycle execution
32 x 8 General purpose working registers
Fully static operation
Up to 20MIPS throughput at 20MHz
On-chip 2-cycle multiplier
JTAG (IEEE std. 1149.1 compliant) interface
Programmable watchdog timer with separate on-chip oscillator
