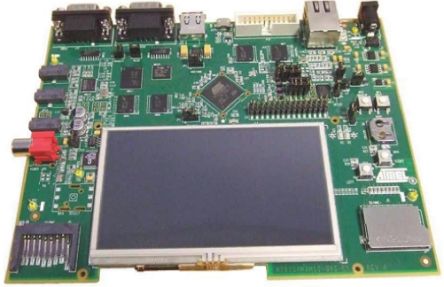

The AT91SAM9M10-G45-EK is a fully featured evaluation platform for the Atmel AT91SAM9M10 or AT91SAM9G45 microcontroller.
Two high speed USB hosts and one high speed USB device port
An Ethernet 10/100 interface
Two high speed multimedia card interfaces
An LCD TFT display (480*RGB*272)
A composite video output
A camera interface
External memory block is made of 3 memory types: DDR2-SDRAM, NAND flash, NOR flash
Supports communication peripherals such as USART, SSC and Two Wire Interface (TWI)
The board must not be subjected to high electrostatic potentials. It is strongly recommend using a grounding strap or similar ESD protective device when handling the board in hostile ESD environments.
