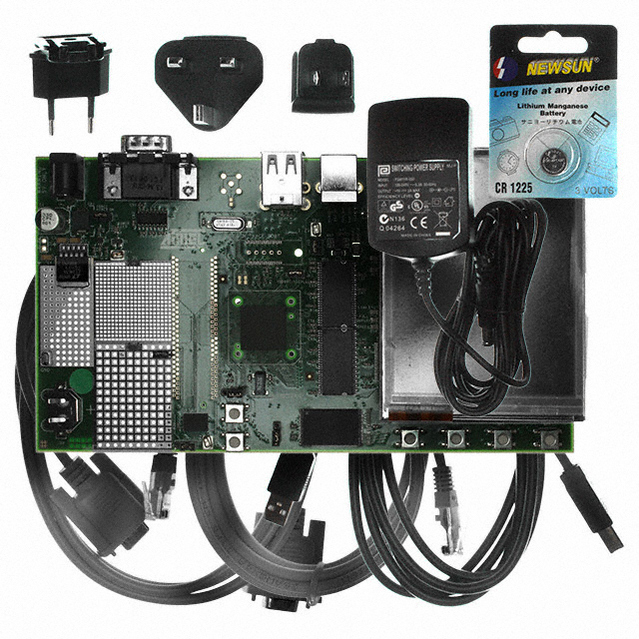

The AT91SAM9G10-EK evaluation kit is an effective platform for evaluating chip performance and developing code for applications based on the AT91SAM9G10. AT91SAM9G10-EK requires 5V DC (±5%). DC power is supplied to the board via the 2.1mm by 5.5mm socket (J1). The SAM9G10 is an ARM926-based microprocessor, running at 266MHz. Its extensive peripheral set includes an integrated graphics LCD controller that supports screen resolutions up to 1280x860 with 16M colours and 24bpp. The SAM9G10 features multiple communication interfaces, such as a FS USB host and device with 2 ports and 2 transceivers, a FS USB device, USARTs, SPIs, I2S and I2C. The external bus interface incorporates controllers for SDRAM and Static memories, with specific interface circuitry for Compact Flash and NAND flash.
64MB of SDRAM memory and 256MB of NAND flash memory
One Atmel serial data flash, one USB device port interface and two USB host port interfaces
One DBGU serial communication port, JTAG/ICE debug interface
One Ethernet 100-base TX with three status LED"s
One Atmel AT73C213 audio DAC
One 3.5" 1/4 VGA TFT LCD module with touch screen and backlight
Four user input push buttons, one wakeup input pushbutton, one reset pushbutton
One data flash SD/MMC card slot
One lithium coin cell battery retainer for 12mm cell size
Dual pitch prototyping area
The board must not be subjected to high electrostatic potentials. In risky ESD environments a grounding strap or similar protective device should be worn when handling the board.
