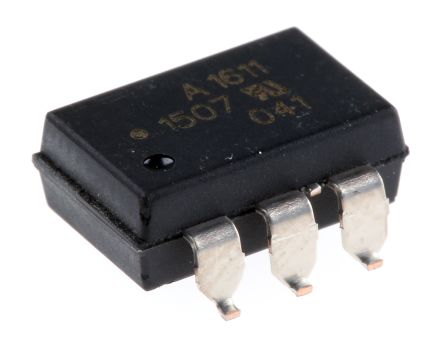

The ASSR-1611 series from Avago Technologies are photoMOS solid state relays in miniature DIP-6pin package. These relays consist of an AlGaAs infra red light-emitting diode (LED) input stage is optically coupled to a high voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs. The relay turns on (contact closes) with a minimum input current of 5mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less. The ASSR-1611 is specifically designed for high current applications. Typical applications include factory automation, data acquisition, industrial controls, measuring instrument and EMR / reed relay replacement.
Compact solid state bidirectional signal switch
SPST-NO contact configuration
Output withstand voltage is 60V
2.5A or 5A current rating
CMOS compatibility low input current
Low on-resistance of 20mohm typical for DC and 65mohm typical for AC/DC
3.2ms (Ton) and 0.1ms (Toff ) typical switching speed
High transient immunity is greater than 1kV/µs
High input to output insulation voltage
UL, CSA approved
It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage or degradation which may be induced by ESD.
