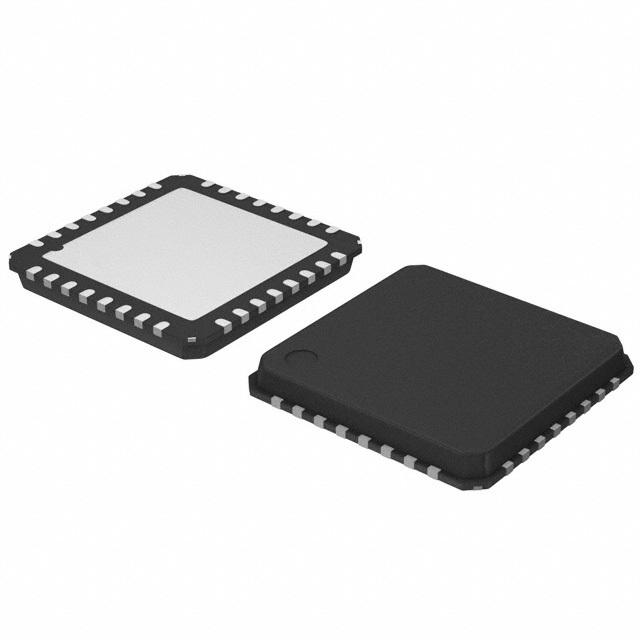

The AMIS-30623 is a single-chip microstepping motor driver with position controller and control/diagnostic interface. It is ready to build dedicated mechatronics solutions connected remotely with a LIN master.The device receives positioning instructions through the bus and subsequently drives the motor coils to the desired position. The on-chip position controller is configurable (OTP or RAM) for different motor types, positioning ranges and parameters for speed, acceleration and deceleration. The advanced motion qualification mode enables verification of the complete mechanical system in function of the selected motion parameters. The AMIS-30623 acts as a slave on the LIN bus and the master can fetch specific status information like actual position, error flags, etc. from each individual slave node.An integrated sensorless step-loss detection prevents the positioner from loosing steps and stops the motor when running into stall. This enables silent, yet accurate position calibrations during a referencing run and allows semi-closed loop operation when approaching the mechanical end-stops.The chip is implemented in I2T100 technology, enabling both high voltage analog circuitry and digital functionality on the same chip. The AMIS-30623 is fully compatible with the automotive voltage requirements.
Features
---
|
Sensorless step-loss detection
Automatic selection of fast and slow decay mode
No external flyback diodes required
Configurable speeds and acceleration
Field programmable node addresses
Dynamically allocated identifiers
Both physical and data-link layers (conform to LIN rev. 1.3)
LIN bus short circuit protection to supply and ground
High temp warning and management
Lost LIN safe operation
Micro-stepping technology
Peak current up to 800 mA
Fixed frequency PWM current control
Automatic selection of fast and slow decay mode
No external flyback diodes required
Compliant with 14 V automotive systems and industrial systems up to 24 V
